-Dark Sky compliant.
-10-year/100,000-hour limited warranty.
PRLD up to 120w (16,012lms)
Portland LED Architectural Luminaire complements a diverse range of architectural settings, such as residential Exteriors, Walkways, Perimeters, School Campuses, Industrial/Commercial Spaces, Parking Lots, and Recreational Parks. Portland Family offers a variety of mounting options. Select the combinations that meet your needs. Portland is suitable for wet locations.
Construction:
- Heavy gauge spun aluminum housing, Cast aluminum 356 alloy arm, and fitter.
- Mil powder coat finish.
- Clear Optics System, IP67 Rated.
- Silicone gasket to prevent leakage and provide IP66-rated protection.
- Engineered for best thermal dissipation.

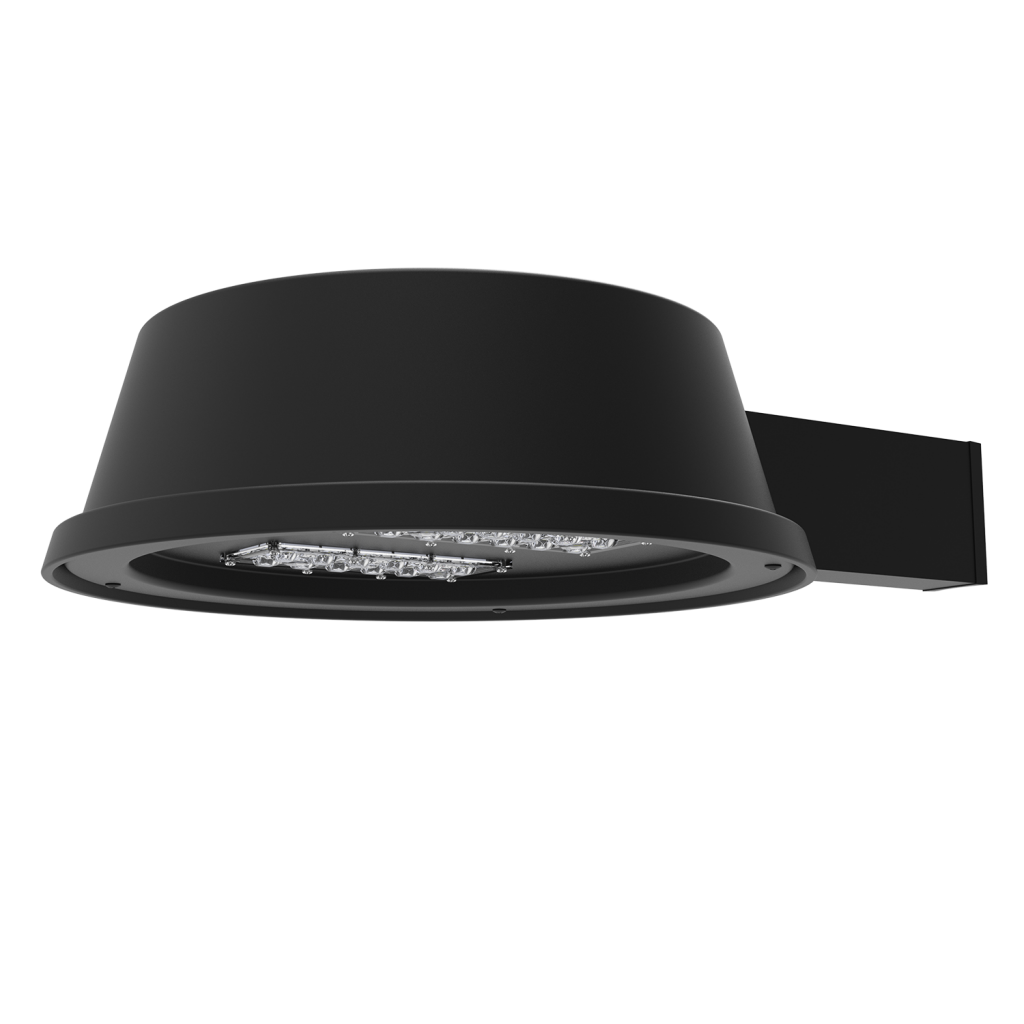

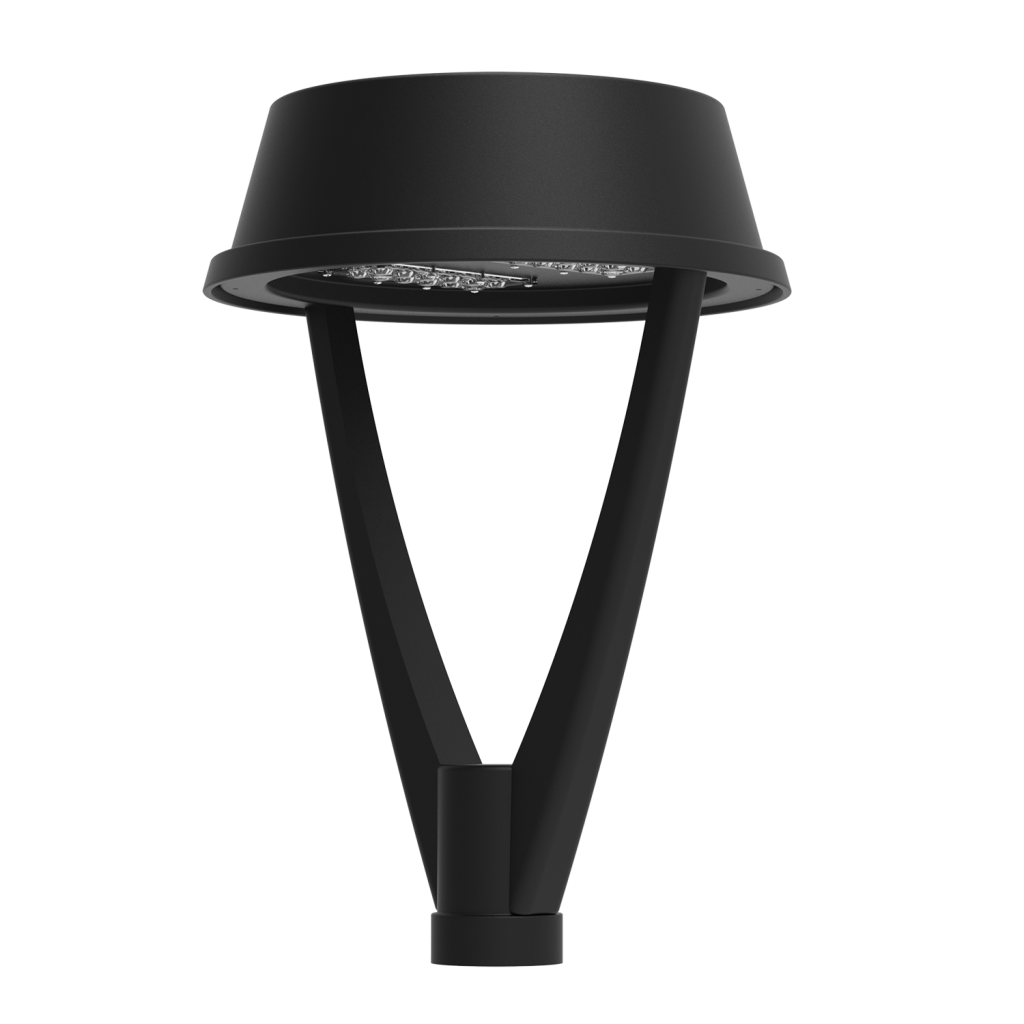

- Mounting: Extruded arm mount over 4”,5”,6” round or square pole, Post Top over a 3” O.D. Tenon. (standard). The adapter is required for other mounting sizes.
Features:
- Optic Distribution. T2, T3,T4, T5.
- Improved lumen maintenance.
- Utilizes highly efficient LED’s .
- Operating temperatures: -30°C ~ 60°C .
- Driver: 120-277v (MV) or 480v (HV) (Options).
- 0-10V Dimming. (Standard).
- 10Kv Surge Protector. (Standard).
- Occupancy sensors.
- 7Pin photo cell.
- Wattage Adjuster.
