-10-year/100,000-hour limited warranty.
SWIRL-B up to 30w (7,000lms)

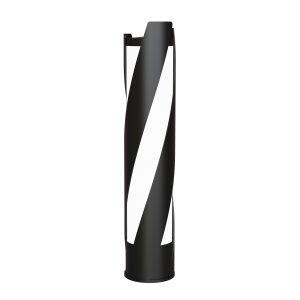

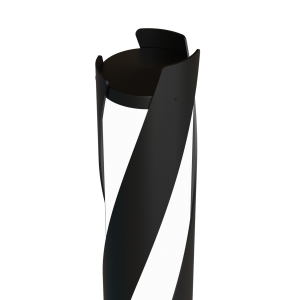

Swirl Bollard. Architectural LED pedestrian Luminaire, the modern curved design complements a diverse range of architectural settings, such as residential Exteriors, Walkways, Perimeters, School Campuses, Industrial/Commercial Spaces, Parking Lots,and Recreational Parks. Swirl Bollard offers a variety of finishes (see ordering guide). Select the combinations that meet your needs.
Swirl Bollard is suitable for wet locations.
Construction:
- Cast aluminum sub-structure and laser-cut panel
- 2Mil powder coat finish.
- Opal acrylic lens. (standard)
- Silicone gasket to prevent leakage and provide IP66-rated protection.
- Mounting: (3x) Anchor Bolts 3/8 x 18” Long.
Features:
- Lumileds linear LEDs.
- Improved lumen maintenance.
Utilizes highly efficient LED’s. - Operating temperatures: -30°C ~ 60°C.
- Driver: 120-277v (MV).
- 0-10V Dimming. (Standard).
- 10Kv Surge Protector. (Standard).
